Washer Nozzle - Removal

FRONT

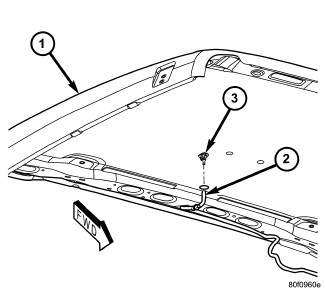

1. Unlatch, open and support the hood (1).
2. From the underside of the hood near the rear edge, disconnect the hose connection (2) from the barbed nipple of the front washer nozzle (3).
3. From the underside of the hood, depress the integral latch feature of the front washer nozzle and push the nozzle out through the mounting hole toward the top side of the hood.
4. Remove the nozzle from the top of the hood panel.
