Full Front Door

REMOVAL





1. Remove the carrier plate. Front Full Door Carrier Plate - Removal.

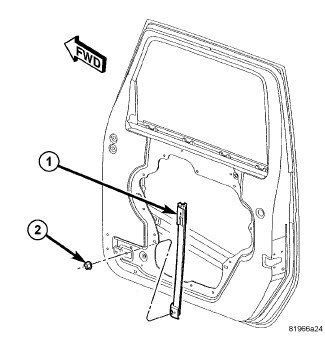

2. Remove the nut (2) and position the run channel (1) aside.





3. Separate the clip (2) from the glass (1) and lower the glass in the run channel.
4. Turn the glass so the front of the glass faces down and remove the glass through the glass opening.
