Front Output Shaft Seal - Removal

REMOVAL

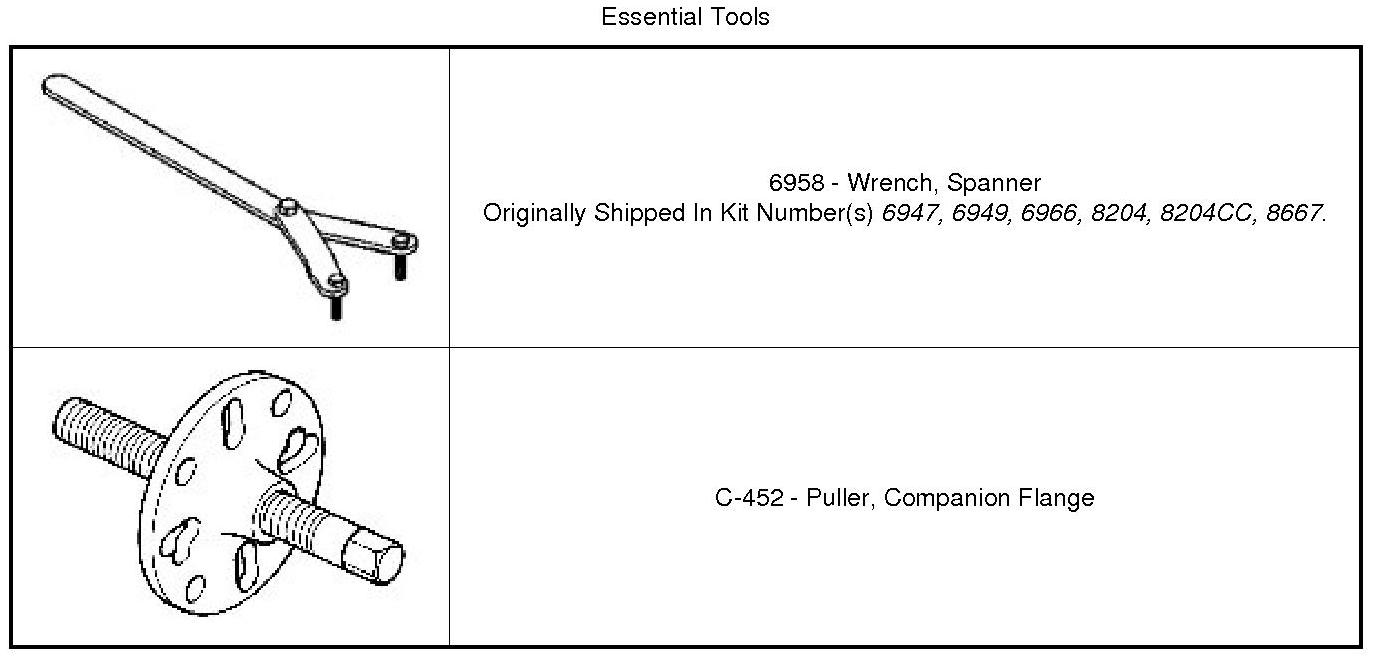

Special Tools:















1. Shift transfer case into NEUTRAL.
2. Raise vehicle.
3. Remove front propeller shaft. Drive Shaft - Removal

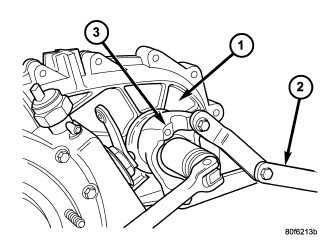

4. Using Spanner Wrench (2), remove yoke nut. Discard nut after removal. It is not reusable.










5. Remove yoke (2) from output shaft. Use puller if flange can not be removed by hand.

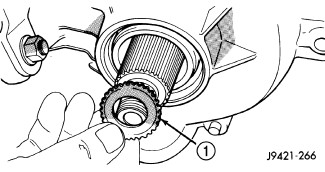

6. Remove yoke rubber seal (1) from front output shaft.
7. Remove front output shaft seal with suitable pry tool, or a slide hammer mounted screw.
