Output Shaft Extension Housing Seal - Installation






INSTALLATION

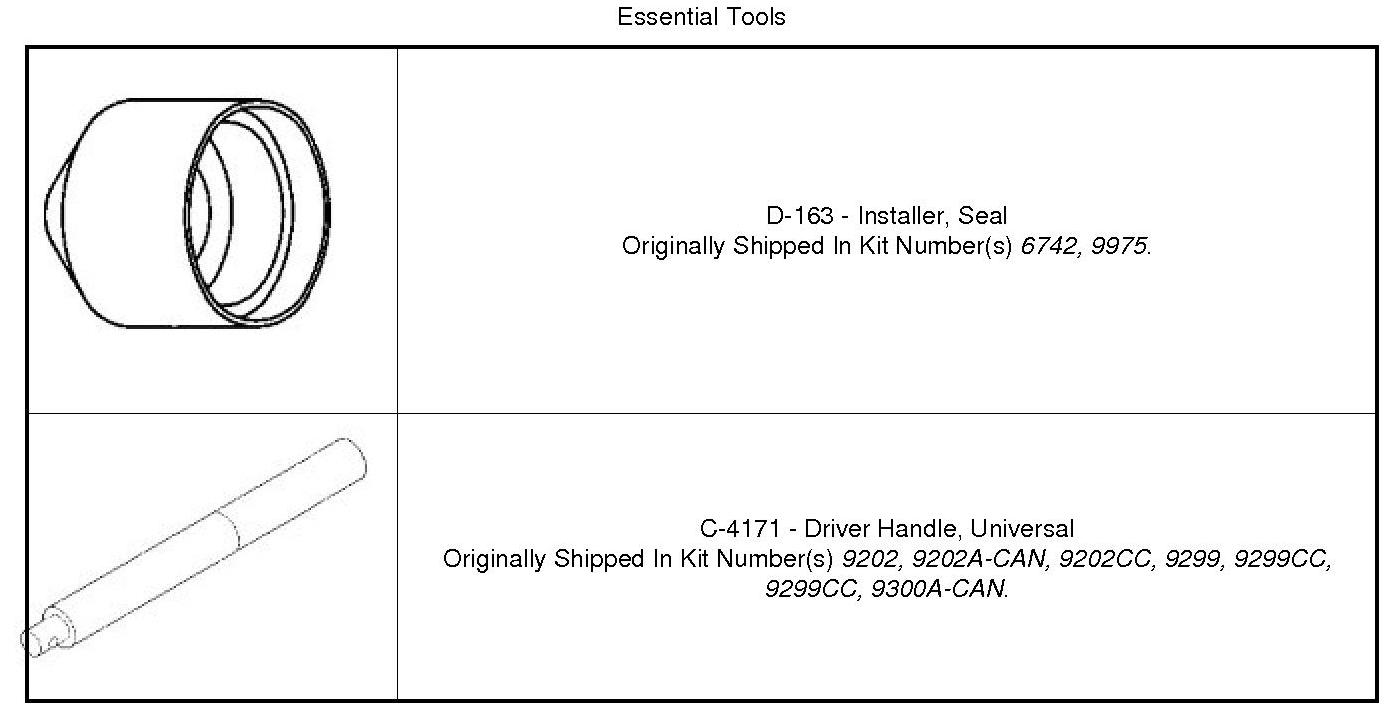

Special Tools:















1. Clean fluid residue from sealing surface and inspect for defects.
2. Using Seal Installer (2) and Universal Handle (1), install seal in extension housing.
3. Install propeller shaft. Drive Shaft - Installation
4. Verify proper transfer case fluid level.
5. Lower vehicle.
