Front Output Shaft Seal - Removal






REMOVAL










1. Raise vehicle.
2. Remove front propeller shaft. Drive Shaft - Removal
3. Remove front output shaft companion flange.

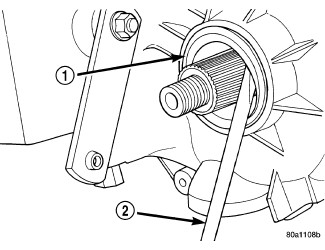

4. Remove seal (1) from front case with pry tool (2).
