Transmission Oil Temperature Sensor - Description






DESCRIPTION

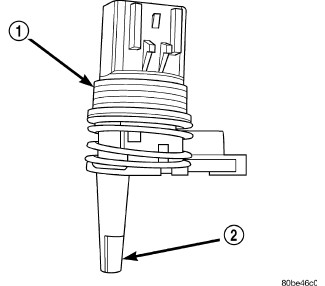

The transmission temperature sensor (2) is located in the transmission range sensor (1) and communicates transmission sump temperature to the TCM.
