NSG370 Manual Transmission

DRAIN AND FILL





1. With vehicle in neutral, position vehicle on hoist.
2. Loosen the exhaust as necessary to gain access to drain plug. Catalytic Converter - Removal.

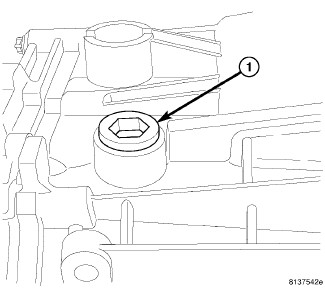

3. Remove drain plug (1) and drain fluid.

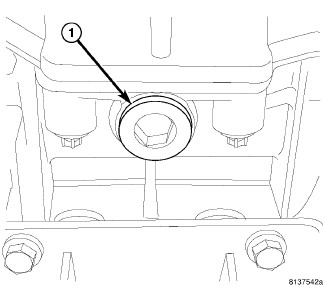

4. Install drain plug and remove fill plug (1).
5. Fill transmission with 1.5 L (3.17 pts.) of Mopar(R) Manual Transmission Lubricant MS-9224 or to the bottom of the fill plug (1) hole.
6. Install the exhaust. Catalytic Converter - Installation.
