Differential Coil - Installation

INSTALLATION

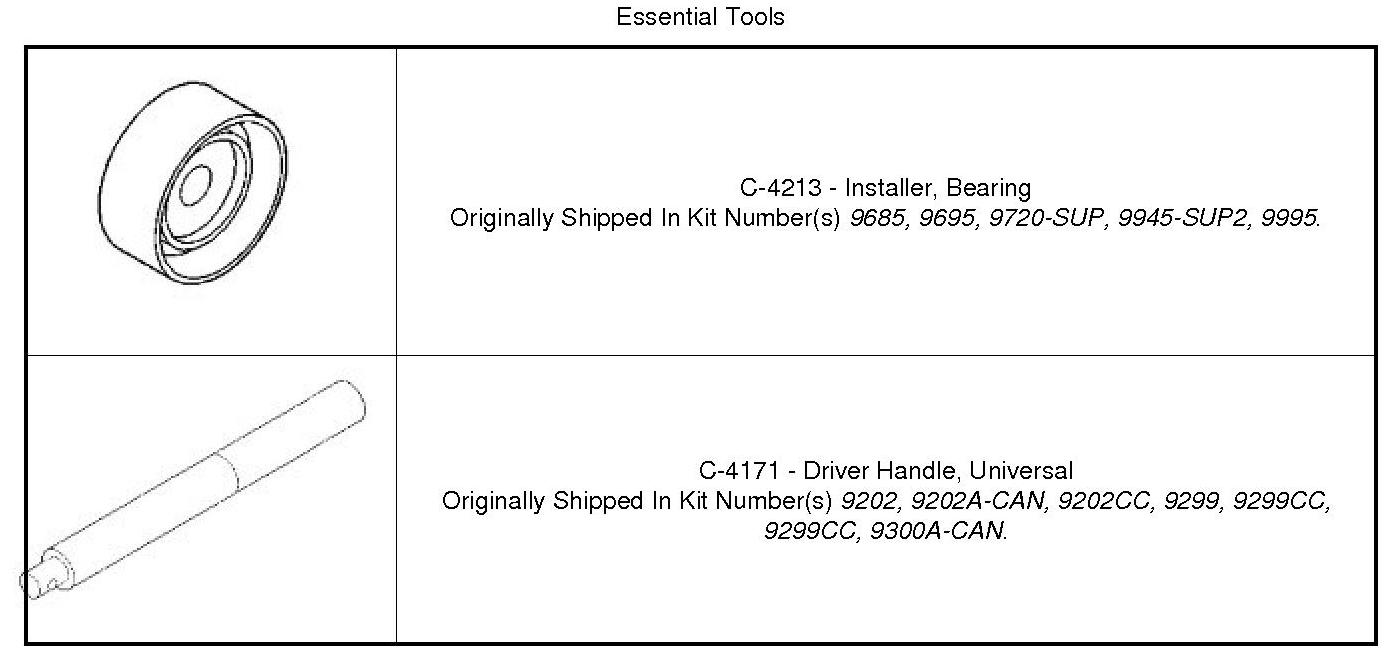

Special Tools:










1. Install coil (1) on differential case.





2. Install thrust washer (1) on top of the coil (2).





3. Install differential side bearing with Installer (1) and Handle (2).
4. Install differential into the housing.
