Differential Carrier Bearing - Removal

REMOVAL

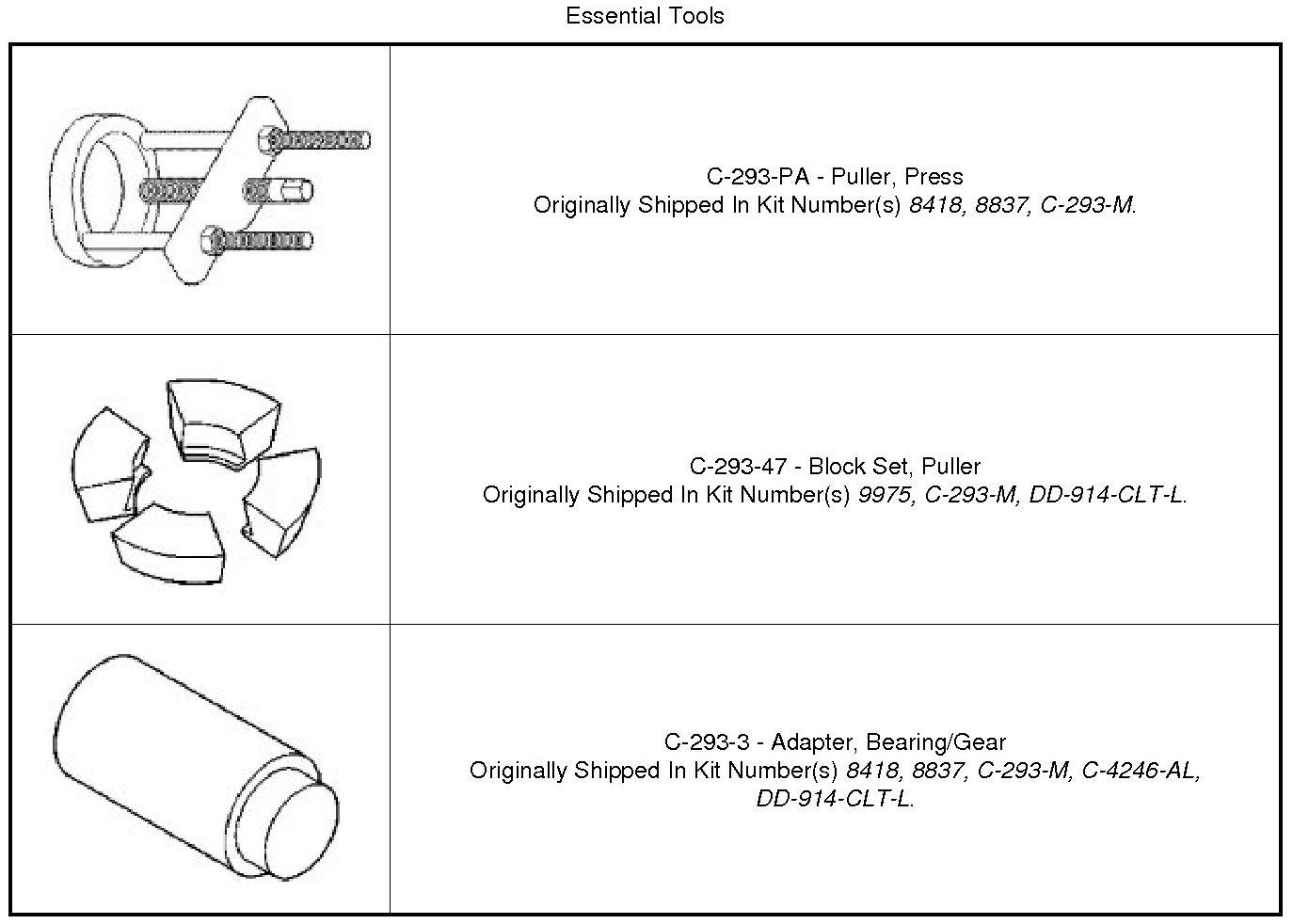

Special Tools:










1. Remove differential case from axle housing.

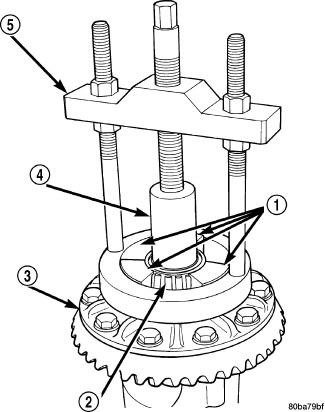

2. Remove bearings (2) from the differential case with Puller (5), Adapters (1) and Plug (4).

Note: Use the same tools for the Tru-Lok differential.
