Differential Carrier Bearing - Installation

INSTALLATION

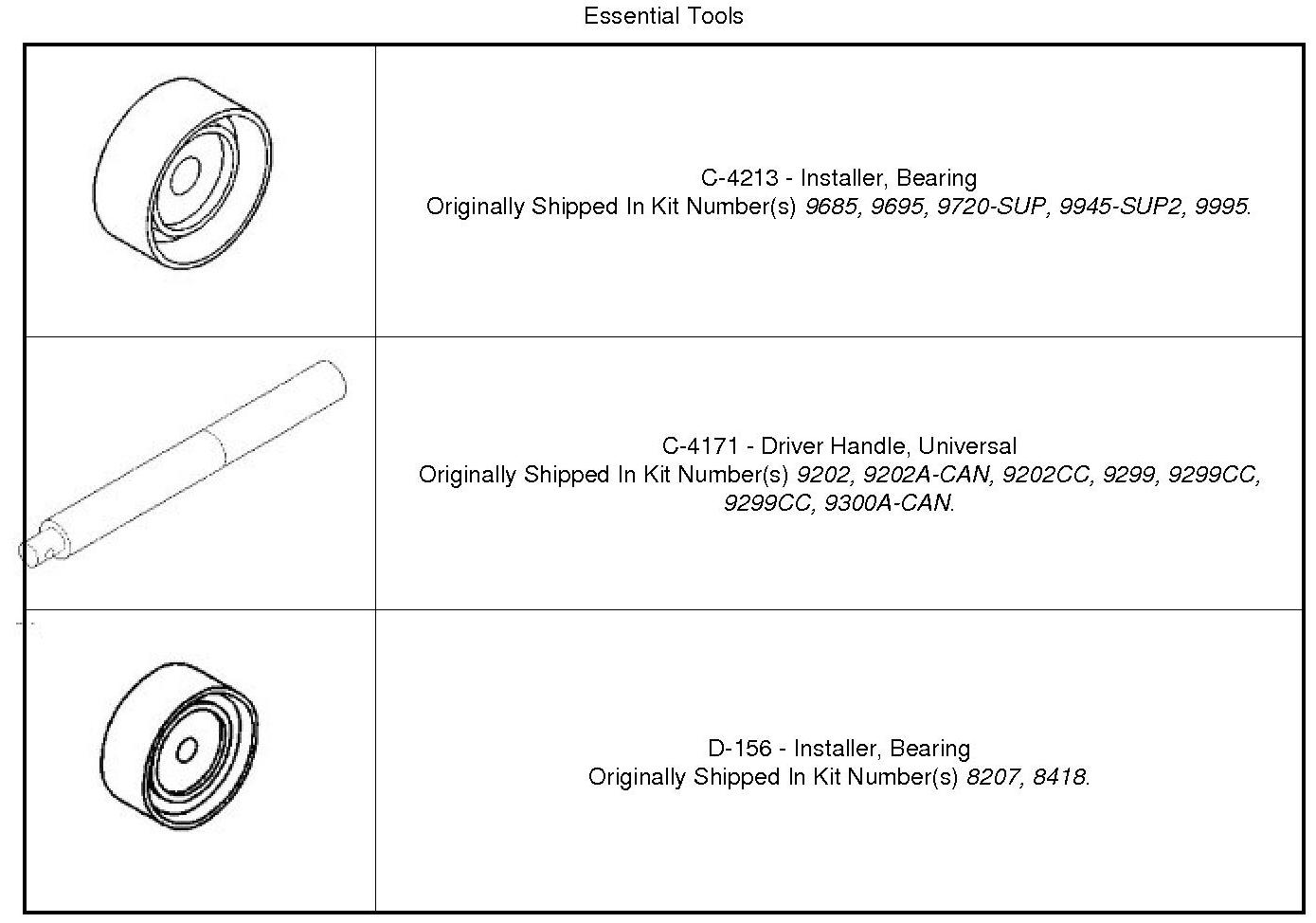

Special Tools:

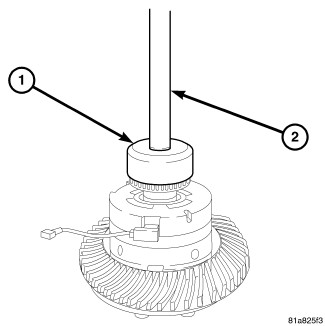

1. Install differential side bearings on Tru-Lok differentials with Installer (1) and Handle (2).

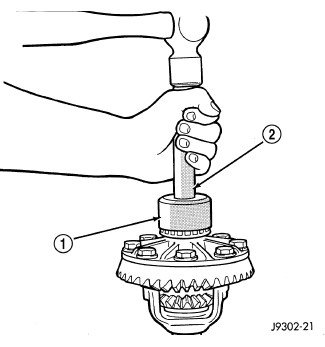

2. Install differential side bearings on open or Trac-Lok(R) differentials with Installer (1) and Handle (2).
3. Install differential into the housing.
