Axle Shaft Bearing - Removal

REMOVAL

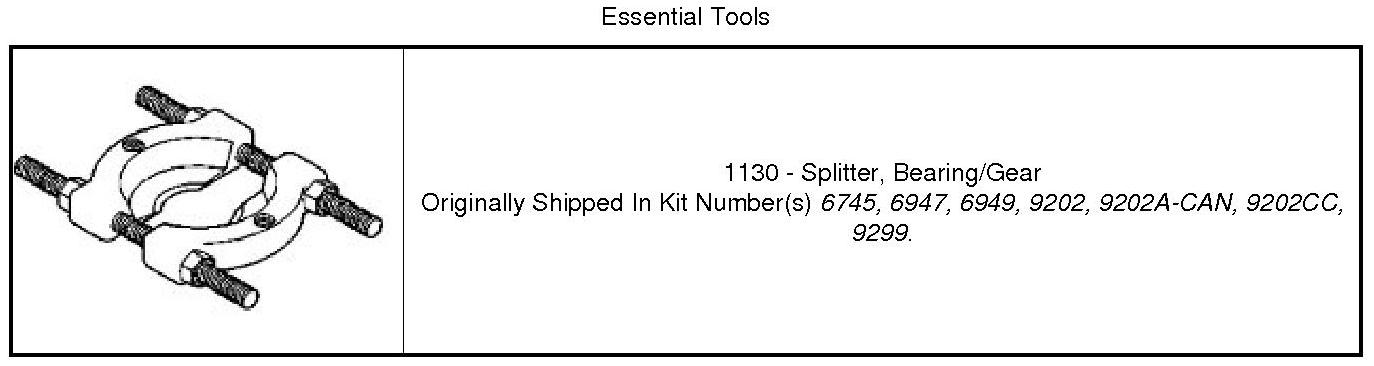

Special Tools:










1. Remove axle shaft from vehicle.

NOTE: Axle bearing race is a slip fit in the axle tube. No tool are required.

2. Remove brake dust shield (1) and support plate (2) from the axle.

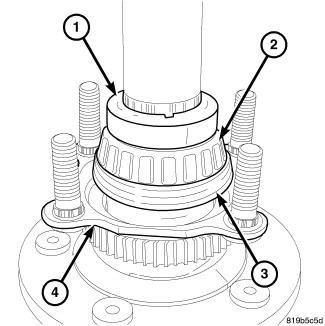

3. Bearing retainer (1), axle bearing (2), axle shaft seal (3) and axle shaft retainer (4) are removed as an assembly.

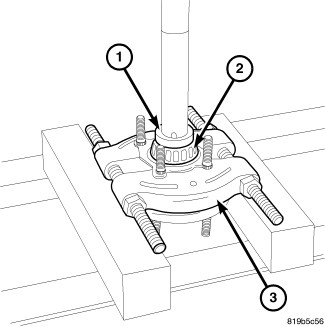

4. Remove bearing retainer (1) and bearing (2) with seal from axle with Splitter (3) and press. Position splitter between axle shaft retainer and tone ring and press assembly off shaft.
