Differential Carrier Bearings - Removal






REMOVAL

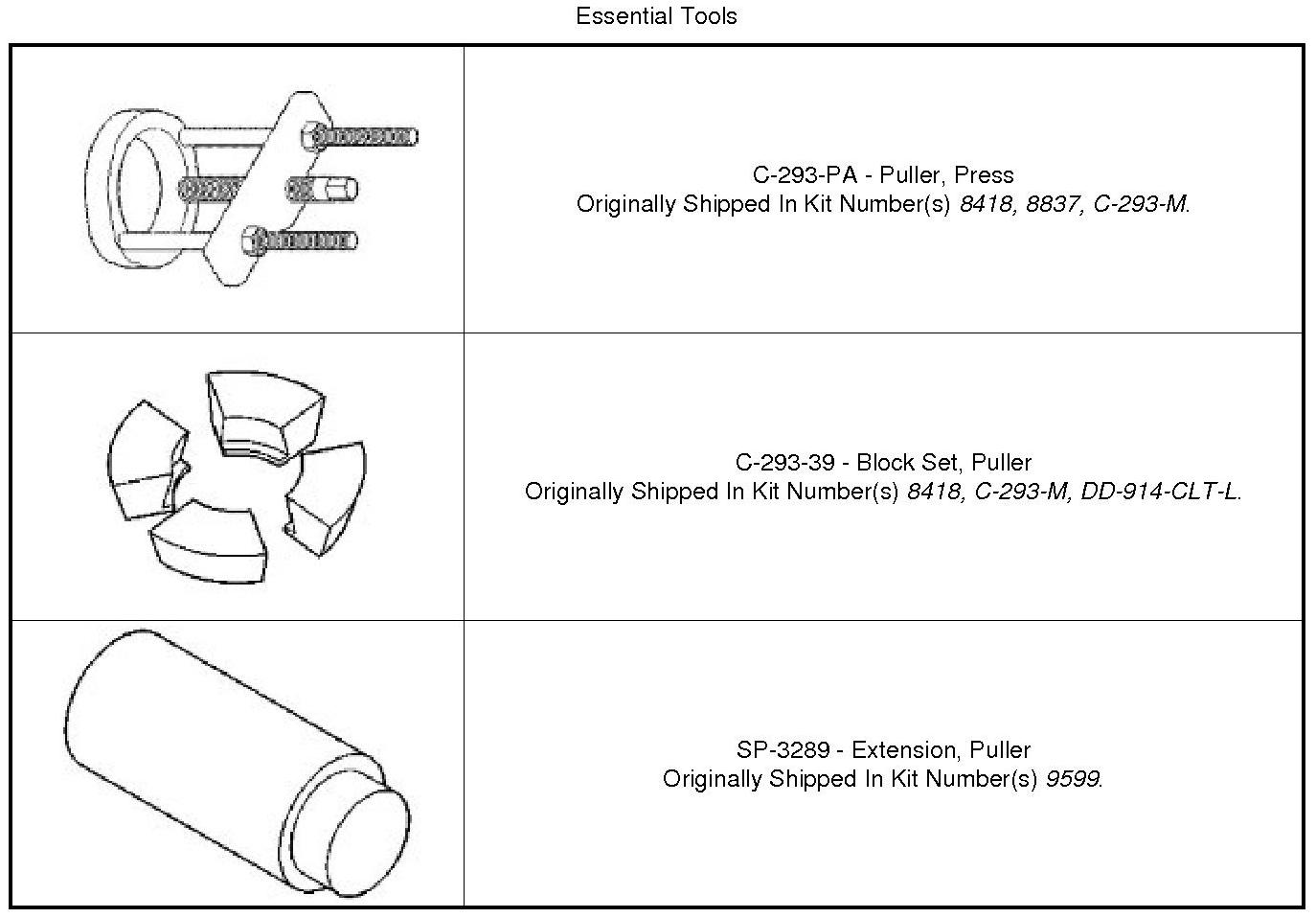

Special Tools:

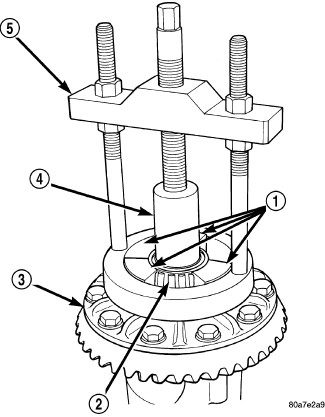

1. Remove bearings (2) from the differential case (3) with Puller (5) Adapter (1) and Plug (4).
