Differential Carrier - Disassembly

DISASSEMBLY

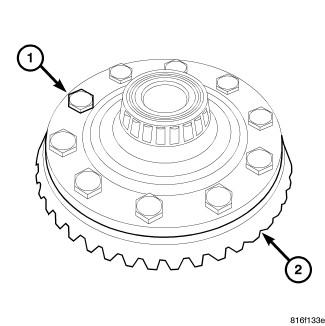

1. Remove ring gear bolts (1) and ring gear (2) from differential.

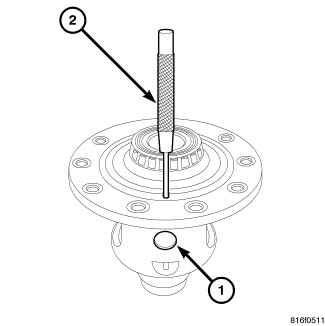

2. Remove pinion mate shaft (1) roll pin with a punch (2) and hammer.

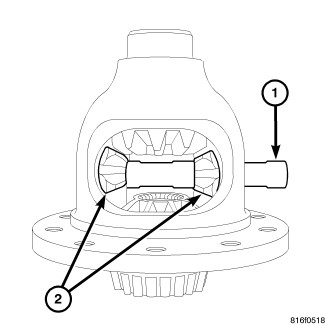

3. Remove pinion mate shaft (1) from differential and pinion gears (2).

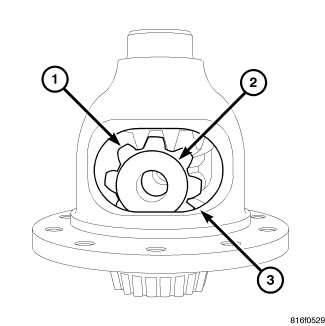

4. Rotate pinion gears (1) with thrust washers (2) to differential windows (3).
5. Remove pinion gears (1) with thrust washers (2) through differential windows (3).

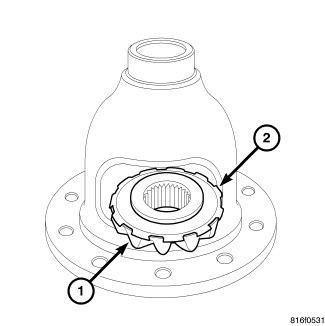

6. Remove first side gear (1) with thrust washer (2) through differential window.

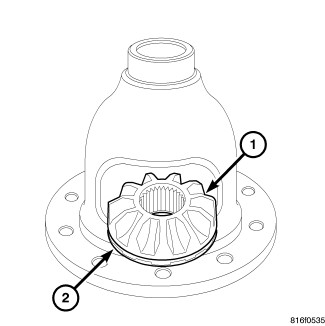

7. Remove second side gear (1) with thrust washer (2) through differential window.
