Axle Shaft Seal - Installation

INSTALLATION

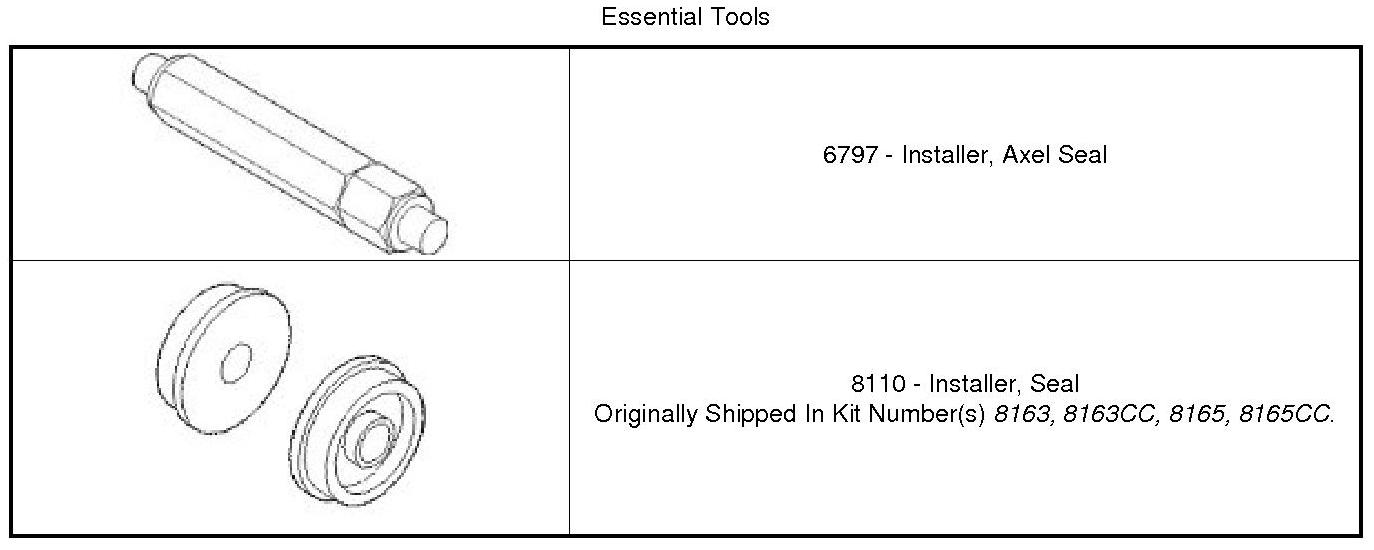

Special Tools:










1. Clean axle oil seal bores.

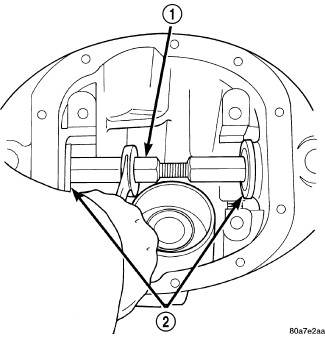

2. Install oil seals in axle tube, then with Turnbuckle (1) and Discs (2) tighten tool until disc bottoms (2) in housing.

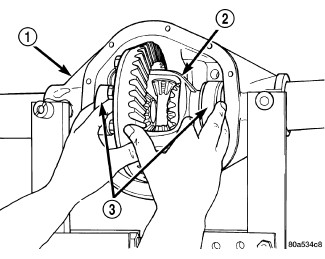

3. Install differential (1) into housing (1) with bearing cups (3) and shims. Install bearing caps.





4. Install hub bearings (1) with axle shafts (2).
5. Install wheel speed sensor.
6. Install brake components.
