Clutch Slave Cylinder - Installation

INSTALLATION






CAUTION: Do not allow release lever plunger to pivot more than 2° in either direction in the slave cylinder bore. Allowing the plunger to pivot more than 2° in the bore will cause fluid to bypass the seal and result in fluid leakage.

NOTE: Pull the clutch release lever toward the slave cylinder opening to insure proper seating of the slave cylinder plunger to the release lever pocket.

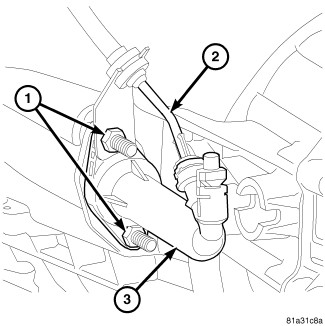

1. Install slave cylinder (3) in transmission.
2. Install hydraulic line (2) and with bracket to slave cylinder.

Note: Verify O-ring is on hydraulic line.

3. Install slave cylinder nuts (1) and tighten to 23 Nm (17 ft. lbs.).
4. Bleed hydraulic system. Service and Repair.
