Removal

REMOVAL

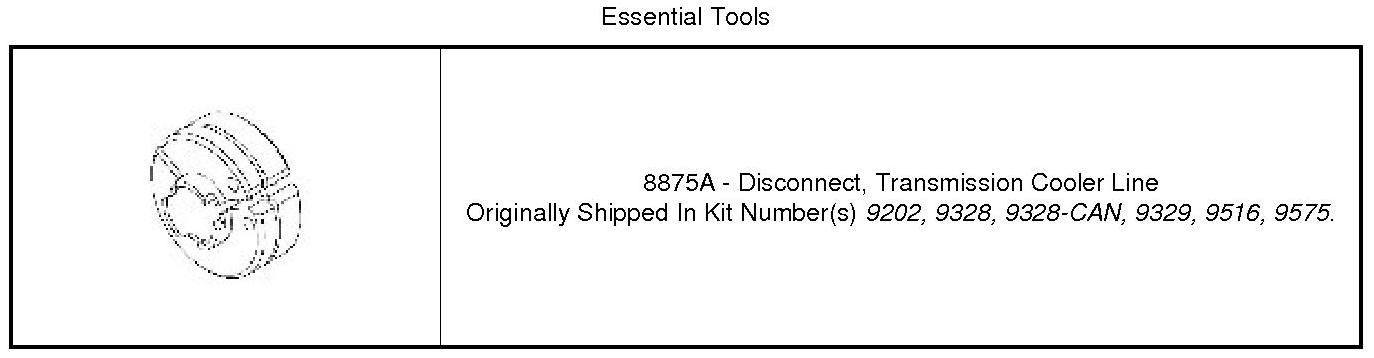

Special Tools:






1. Remove electric cooling fan Cooling Fan - Removal.
2. Remove the transmission cooler line retaining block nut and plate.
3. Using Trans Cooler Line Disconnect , disconnect transmission cooler lines from transmission cooler Service and Repair.
4. Remove the transmission cooler mounting bolts.
5. Remove transmission cooler from vehicle.
