Rear Shock Absorber - Removal
REMOVAL
1. Raise and support the vehicle and the axle.

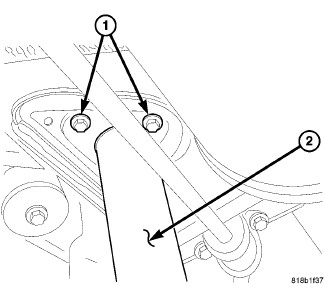

2. Remove the upper mounting bolts (1).
3. Remove the lower nut and bolt (2) from the axle bracket. Remove the shock absorber (1).
REMOVAL
1. Raise and support the vehicle and the axle.
2. Remove the upper mounting bolts (1).
3. Remove the lower nut and bolt (2) from the axle bracket. Remove the shock absorber (1).
