Front Stabilizer Bar Link - Removal

REMOVAL





1. Raise and support the vehicle.

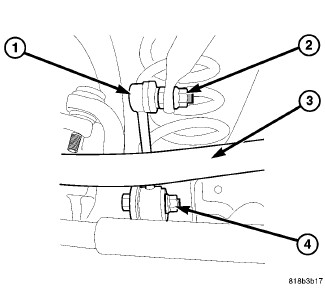

2. Remove the left upper stabilizer bar link nut (1) from the stabilizer bar.
3. Remove the left lower stabilizer bar link bolt (4) to the axle.





4. Remove the right upper stabilizer bar link nut (2) from the stabilizer bar.
5. Remove the right lower stabilizer bar link bolt (4) to the axle.
6. Remove the stabilizer link (1).
