Rear Suspension Stabilizer Bar - Installation

INSTALLATION

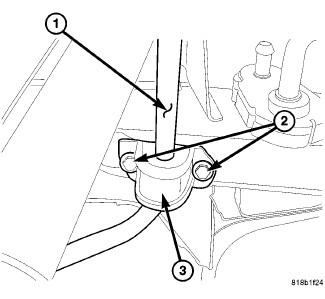

1. Install the stabilizer bar (1) to the frame and install the retainers (3) and bolts (2).

Note: Ensure the bar is centered with equal spacing on both sides.

2. Tighten the retainer bolts (2) to 61 Nm (45 ft. lbs.).





3. Install the links (4) onto the stabilizer bar. Install the nut (1) finger tight.
4. Support the axle and Tighten the link nut (1) to 90 Nm (66 ft. lbs.).
