Stabilizer Bar

STABILIZER BAR





1. Install the stabilizer bar (1) to the vehicle.

NOTE: Stabilizer bar link to axle bolt should be tightened with vehicle sitting on its tires

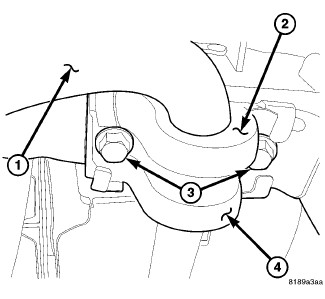

2. Install the right side stabilizer bar bracket bolts (3) to the frame. Tighten to 102 Nm (75 ft. lbs.).
3. Install the left side stabilizer bar bracket bolts (3) to the frame. Tighten to 102 Nm (75 ft. lbs.).
4. Install the splash shield.





5. Install the right upper stabilizer bar link nut (2) to the stabilizer bar. Tighten to 102 Nm (75 ft. lbs.).





6. Install the left upper stabilizer bar link nut (1) to the stabilizer bar. Tighten to 102 Nm (75 ft. lbs.).
7. Remove the support and lower the vehicle.
