Rear Lower Control Arm - Installation

INSTALLATION

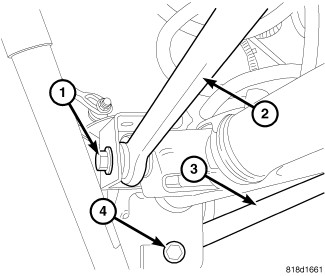

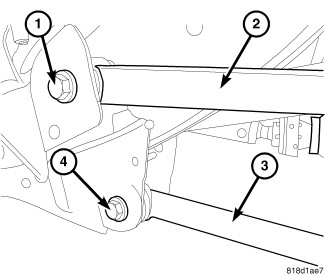

1. Position the lower suspension arm (3) in the axle bracket and frame rail mount.
2. Install the frame mounting bolt (4) finger tight.





3. Install the axle mounting bolt (4) and nut at the axle bracket finger tight.
4. Remove the supports and lower the vehicle.
5. Tighten the lower suspension arm bolts to 169 Nm (125 ft. lbs.) with vehicle weight.
