Front Suspension Axle Bushing - Installation

AXLE BUSHING

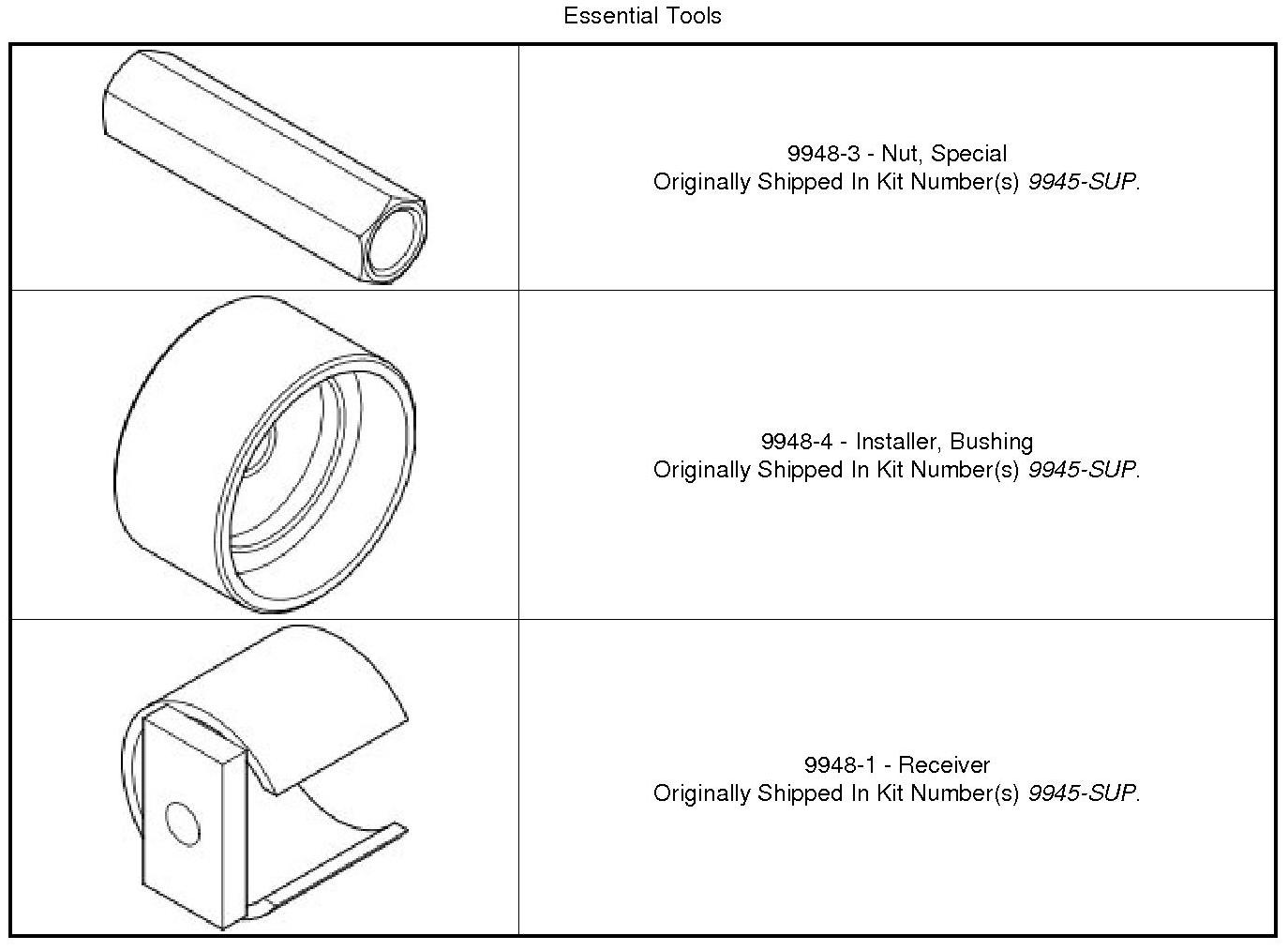

Special Tools:

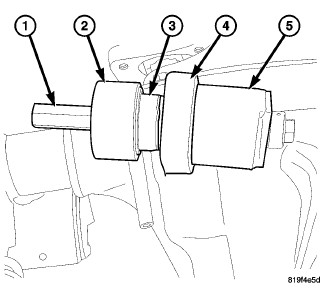

1. Place special tool Nut (1), Driver (2), Receiver (5) and the press the bushing (3) in the axle housing (4).
2. Remove tools and install the upper suspension arm Front Upper Control Arm - Removal.
