Front Suspension Axle Bracket Bushing - Removal

AXLE BRACKET BUSHING

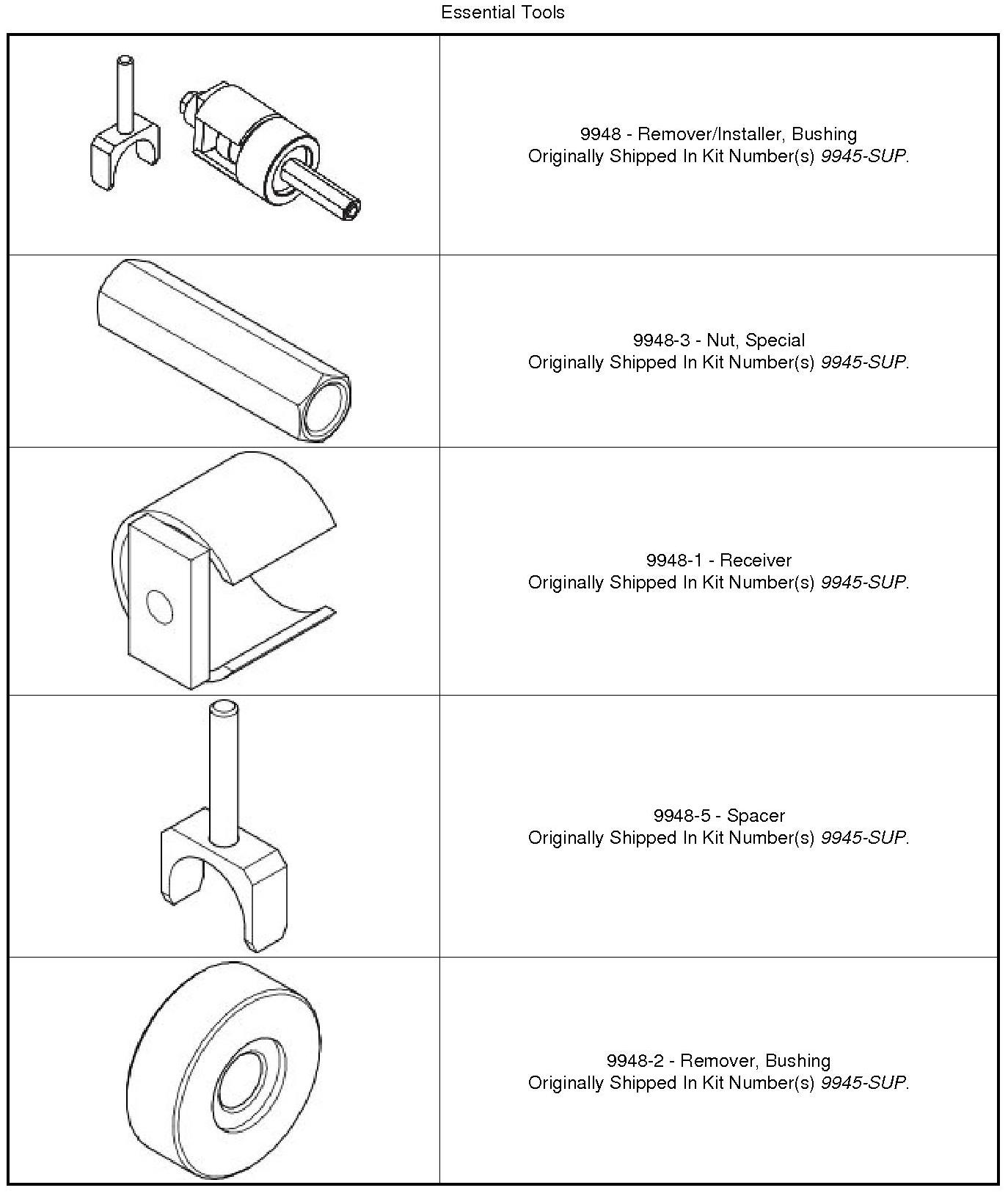

Special Tools:










1. Remove the upper suspension arm from the axle Front Upper Control Arm - Removal.

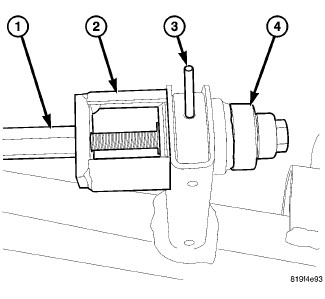

2. Install the Bushing Remover/Installer through the bushing and bracket using the following:
- Nut (1)
- Receiver (2)
- Spacer (3)
- Driver (4)

3. Press the bushing out of the axle bracket.
