Front Suspension Axle Bracket Bushing - Installation

AXLE BRACKET BUSHING

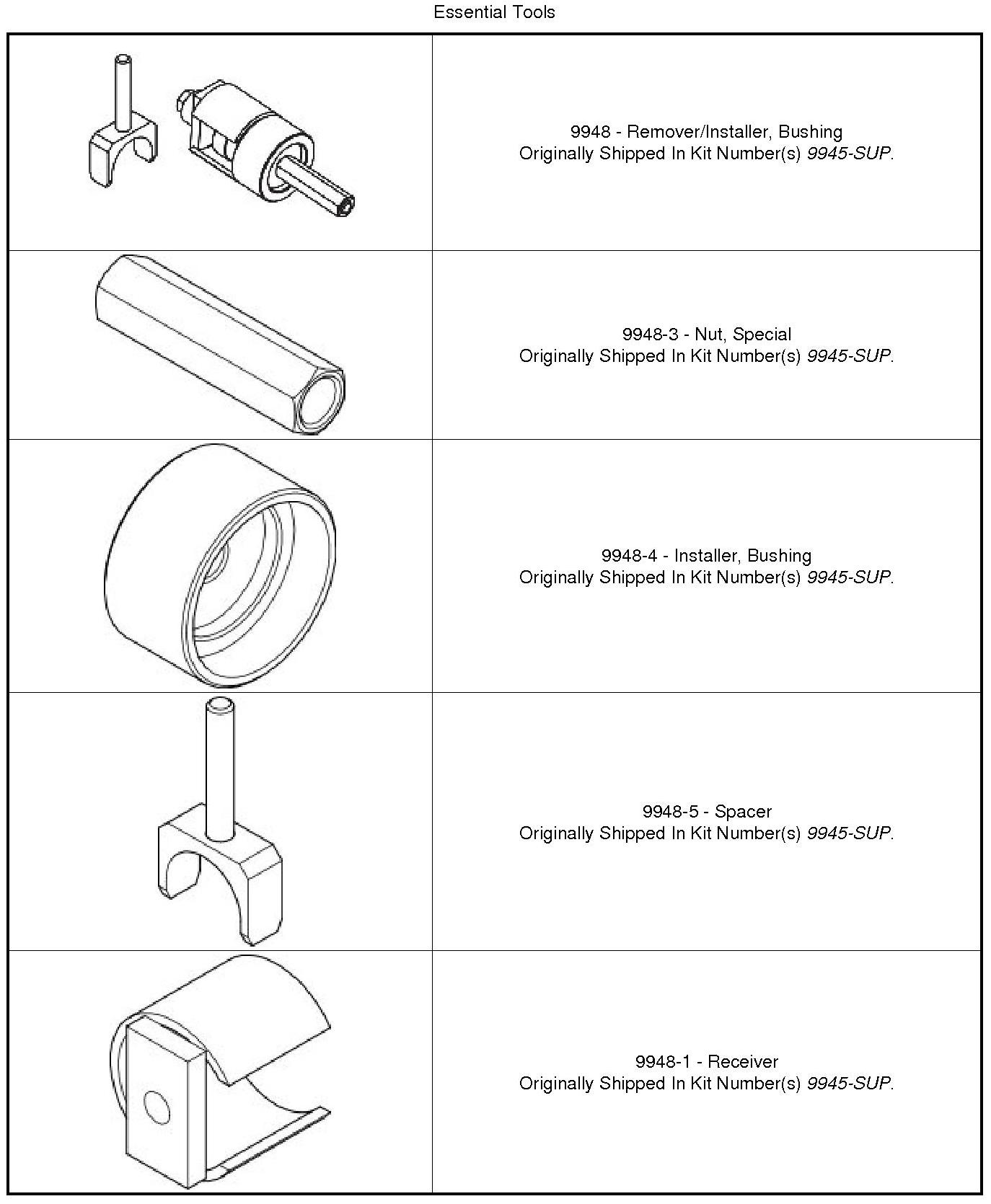

Special Tools:










1. Start the bushing in the axle bracket.

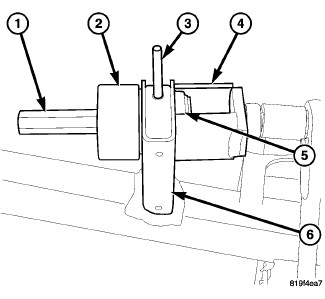

2. Install the Bushing Remover/Installer through the bushing and bracket using the following:
- Nut (1)
- Driver (2)
- Spacer (3)
- Receiver (4)

3. Press the bushing (5) into the axle bracket (6).
4. Remove tools and install the upper suspension arm Front Upper Control Arm - Installation.
