Steering Damper Bracket - Removal

BRACKET

NOTE: Some early built right hand drive vehicles may have a damper with the mounting stud on the damper instead of on the bracket. If the mounting stud is on the damper, the damper and link bracket must be replaced as a kit, and the replacement damper will be different.

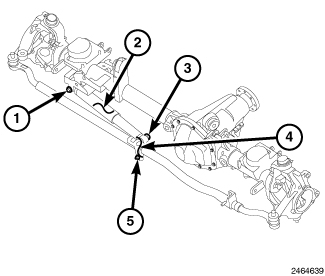

NOTE: Left hand drive shown, right hand drive similar.





1. Place the front wheels in a straight ahead position.
2. Raise and support the vehicle Maintenance.
3. Remove the damper (2) . Steering Damper - Removal
4. Remove the nut and bolt (5) from the linkage bracket (4).

NOTE: It may be necessary to spread the bracket to fit over the tube.

5. Slide the bracket (4) to the tie rod tube end and remove from tie rod tube.
