Power Steering Pump - Description

DESCRIPTION

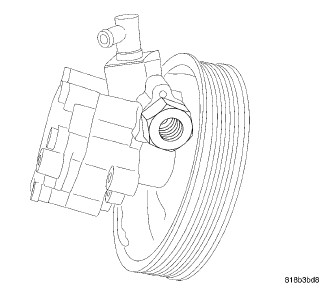

GAS ENGINE





Hydraulic pressure for the power steering system is provided by a belt driven power steering pump. The pump shaft has a pressed-on high strength plastic drive pulley that is belt driven by the crankshaft pulley. The reservoir is a remote reservoir located by the battery. The power steering pump is connected to the steering gear by the pressure and return hoses.

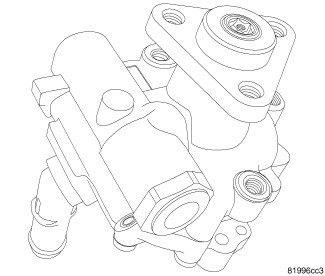

DIESEL ENGINE





Hydraulic pressure for the power steering system is provided by a belt driven power steering pump. The pump shaft has a bolt on steel drive pulley that is belt driven by the crankshaft pulley. The reservoir is a remote reservoir located by the battery. The power steering pump is connected to the steering gear by the pressure and return hoses.
