Reservoir, Power Steering Pump - Installation

INSTALLATION

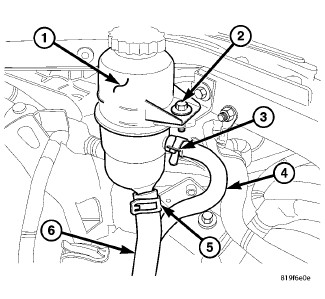

1. Install the reservoir (1) onto the mounting bracket.
2. Install the mounting bolt (2).
3. Install the supply hose (6) to the reservoir (1).
4. Install the return hose (4) to the reservoir (1).
5. Reconnect the hose clamps (3AND5) on the hoses at the reservoir (1).
6. Add power steering fluid,Power Steering System Bleeding.
