Fuel Injector - Installation

INSTALLATION










1. If same injector(s) is being reinstalled, install new O-ring(s).
2. Apply a small amount of clean engine oil to each injector O-ring. This will aid in installation.

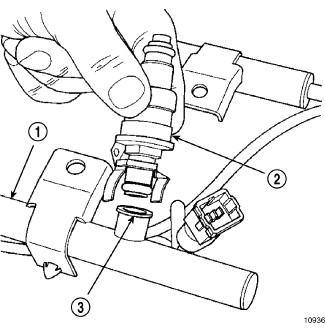

3. Push fuel injector(s) into fuel rail assembly (3) until clip has latched.
4. Install fuel rail.
5. Start engine and check for fuel leaks.
