Positive Crankcase Ventilation (PCV) Valve - Removal

REMOVAL





The PCV valve is located in the left valve cover (2) near the ignition coil (4).

1. Remove clamp (3).
2. Remove hose (1).
3. Remove PCV valve (2).

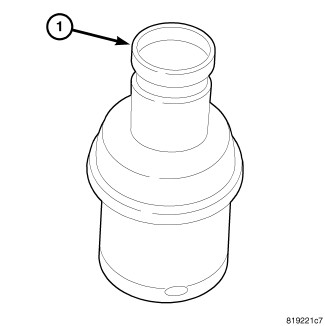

The PCV valve (1) is of typical metal construction.
