Installation

INSTALLATION





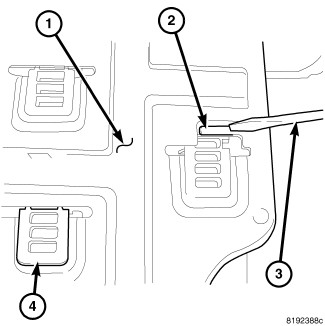

1. Slide the EVAP canister (4) into the mounting bracket (1) and secure the locking tab (2).





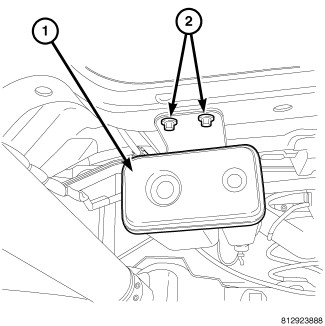

2. Install the two bolts (2) at the front of the EVAP canister mounting bracket (1) and tighten to 14 Nm (10 ft. lbs.).
3. Install the bolt at the rear of the EVAP canister mounting bracket and tighten to 14 Nm (10 ft. lbs.).

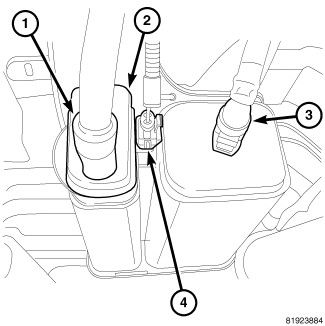

4. Connect the ESIM switch (2) fresh air hose (1).
5. Connect the ESIM switch (2) electrical connector (4).
6. Connect the fuel tank vapor line quick-connect fitting (3) to the EVAP canister.
7. Lower the vehicle.

NOTE: The vapor/vacuum lines and hoses must be firmly connected, If a leak is present, a Diagnostic Trouble Code (DTC) may be set.

8. Check the vapor/vacuum lines at the ESIM switch, EVAP canister and EVAP purge solenoid for damage or leaks.
