Front

FRONT WHEEL STUD

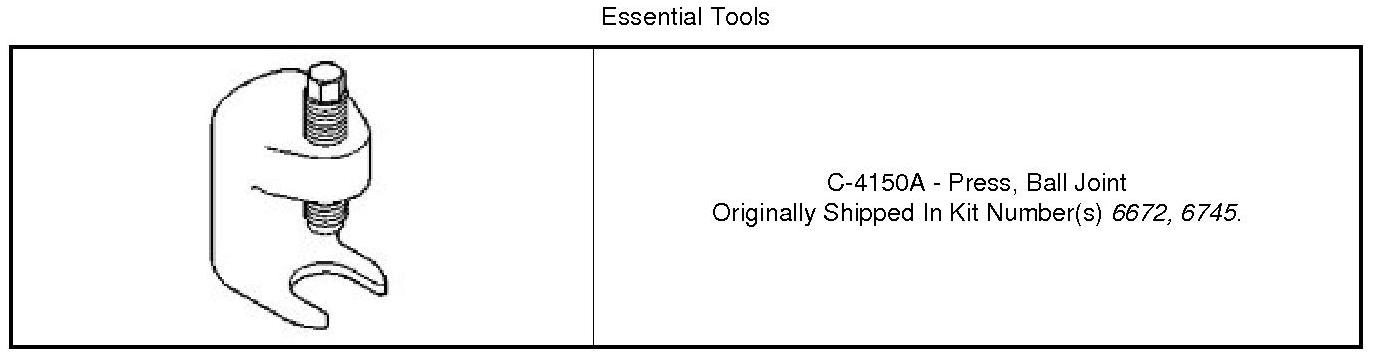

Special Tools:















CAUTION: Do not use a hammer to remove wheel studs.

1. Raise and support vehicle.
2. Remove wheel and tire assembly.
3. Remove brake caliper, caliper adapter and rotor,Brake Rotor - Removal.

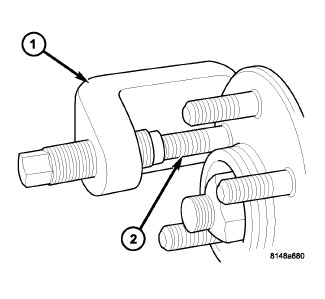

4. Remove stud (2) from hub with Remover (1).
