Underhood Lamp - Installation

LAMP

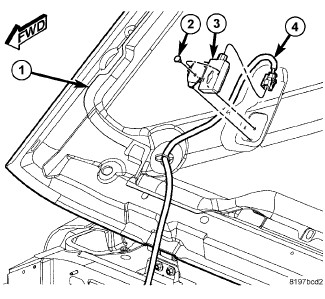

1. Position the underhood lamp and bracket (3) to the underside of the inner hood panel reinforcement (1) as a unit. Be certain that the locating tab on the lamp bracket is engaged into the locating hole in the inner hood panel reinforcement.
2. Install the push pin type blind rivet (2) that secures the underhood lamp to the inner hood panel reinforcement.
3. Reinstall the underhood lamp bulb and lens. . Underhood Lamp Bulb - Installation
4. Reconnect the headlamp and dash wire harness connector (4) to the underhood lamp connector receptacle.
5. Reconnect the battery negative cable.
