Ambient Temperature Sensor - Installation






INSTALLATION





1. Position the ambient temperature sensor in the vehicle.

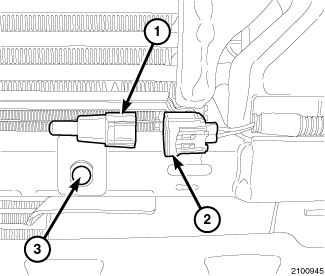

2. Install the retainer (3) that secures the ambient temperature sensor to the lower cross brace.
3. Connect the wire harness connector (2) to the ambient temperature sensor (1).
4. Install the grille assembly Grille - Installation.
5. Connect the battery negative cable.
