Steering Column Opening Cover - Removal

REMOVAL

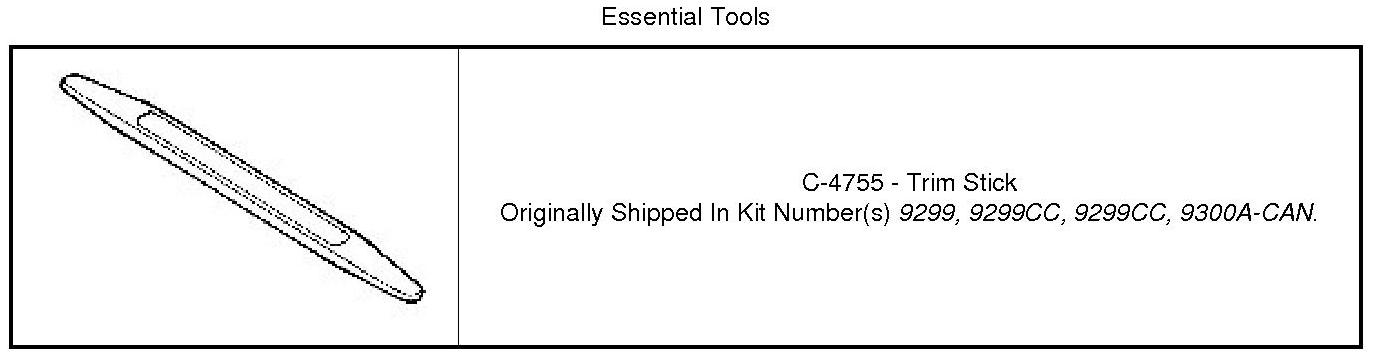

Special Tools:










1. Using a trim stick or equivalent, release the upper clips (1) and rotate the steering column opening cover (2) down and remove from lower tabs.





2. Remove the bolts (1) and remove the reinforcement plate (2).
