Left

REMOVAL





1. Disconnect battery negative cable.

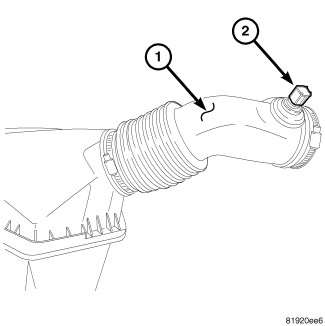

2. Remove the fresh air hose (1).
3. Disconnect left cylinder bank spark plug wires.





4. Remove heat shield attaching bolts.
5. Remove bolts attaching exhaust to manifold.

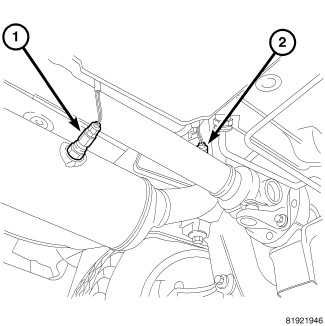

6. Disconnect the left side oxygen sensors (1,2).
7. Remove bolts attaching exhaust manifold to cylinder head.
8. Remove the exhaust manifold.
