Structural Dust Cover - Removal
REMOVAL
1. Raise vehicle on hoist.

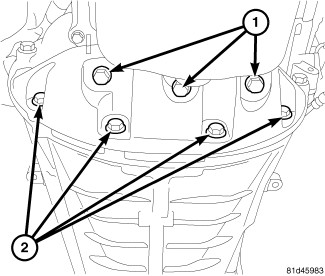

2. Remove the bolts retaining structural cover to transmission (1,2).
3. Remove the bolts retaining structural cover to engine.
4. Remove the structural cover.
REMOVAL
1. Raise vehicle on hoist.
2. Remove the bolts retaining structural cover to transmission (1,2).
3. Remove the bolts retaining structural cover to engine.
4. Remove the structural cover.
