Engine Oil Pump - Removal
REMOVAL

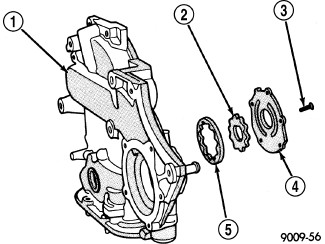

The oil pump (1) is contained within the timing chain cover housing.
1. Remove oil pan.
2. Remove the timing chain cover.
3. Disassemble oil pump from timing chain cover.
4. Clean and Inspect oil pump components.
REMOVAL
The oil pump (1) is contained within the timing chain cover housing.
1. Remove oil pan.
2. Remove the timing chain cover.
3. Disassemble oil pump from timing chain cover.
4. Clean and Inspect oil pump components.
