Engine Oil Pump - Disassembly






DISASSEMBLY

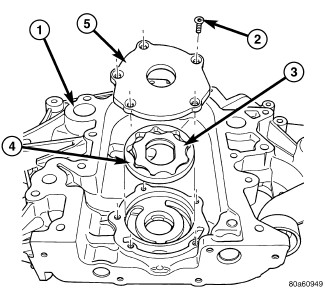

1. Remove oil pump cover screws (2), and lift off cover (5).
2. Remove oil pump rotors (3,4).
3. Clean and inspect oil pump components.
