Accessory Drive Idler Pulley - Installation






3.8L

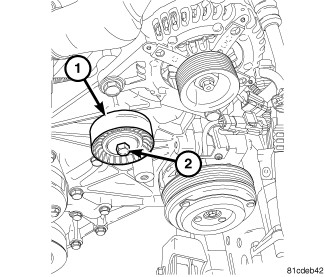

1. Install idler pulley (1) and pulley bolt (2). Tighten bolt to 61 Nm (45 ft. lbs.) torque.
2. install accessory drive belt.Serpentine Accessory Drive Belt - Installation.
