Intake And Exhaust Valves - Installation






INSTALLATION

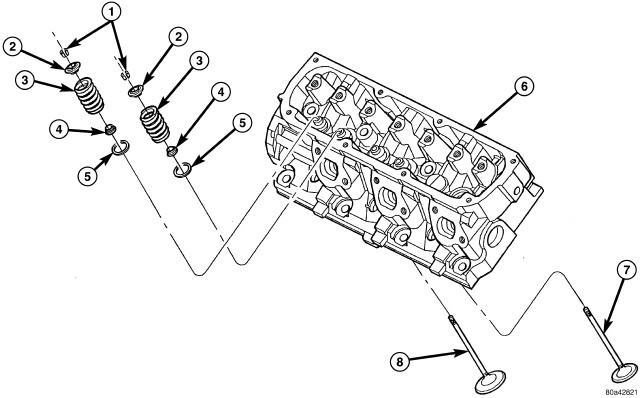

1. Coat valve stems with clean engine oil and insert them in cylinder head.
2. Install valve spring seat on head
.

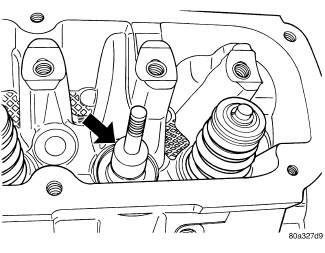

3. Install new seals on all valve stems and over valve guides Install valve springs and valve retainers
4. Install the valve springs. Valve Springs - Installation
