Cylinder Head Off

CYLINDER HEAD OFF

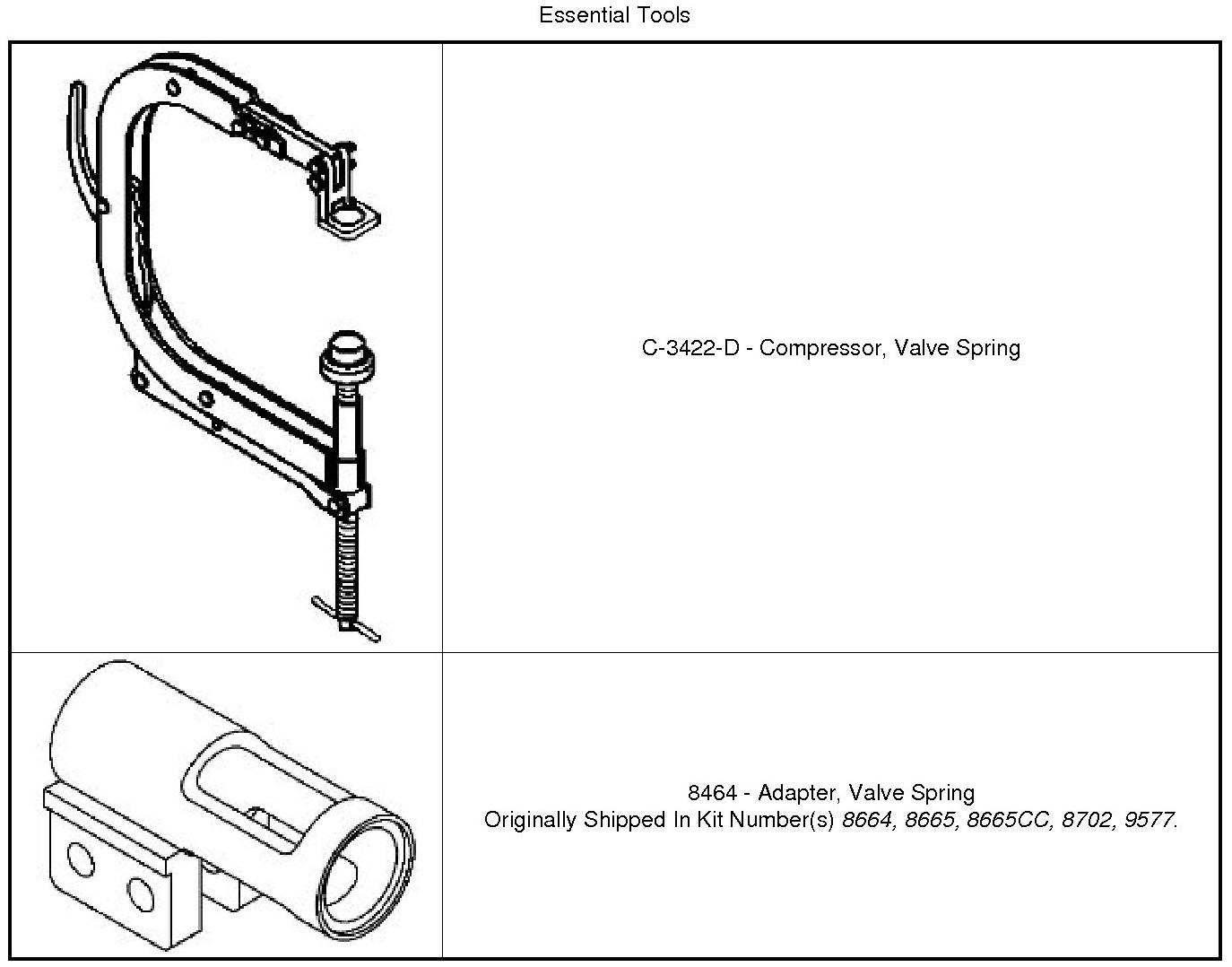

Special Tools:

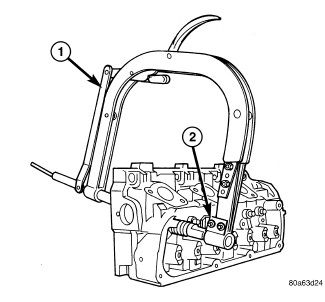

1. With the cylinder head on a bench, position Special Tool with Adapter on the valve and spring retainer.
2. Compress the spring only enough to remove the valve retainer locks.
3. Slowly release the spring tension and remove the valve spring and retainer.
4. For removal of the valve stem seal Valve Guide Seals - Removal.
