Right






REMOVAL










1. Disconnect negative cable from battery.
2. Disconnect spark plug wires from plugs.
3. Disconnect CCV hose from cylinder head cover.
4. Remove cylinder head cover bolts.

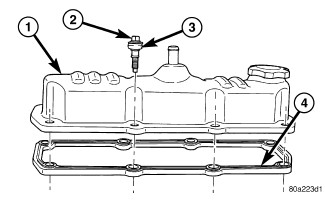

5. Remove cylinder head cover (1) and gasket (4).
