Left

REMOVAL

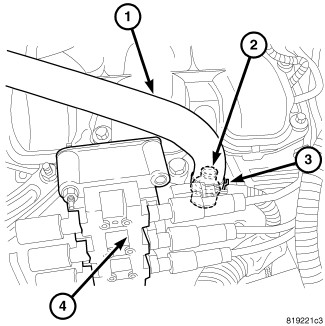

1. Remove the ignition coil pack (1).
2. Disconnect spark plug wires from spark plugs.

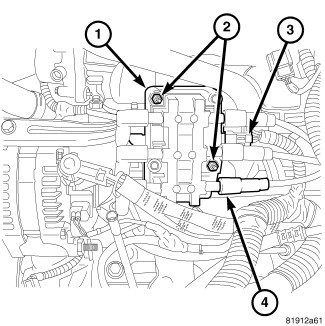

3. Disconnect PCV hose (1) from cylinder head cover.

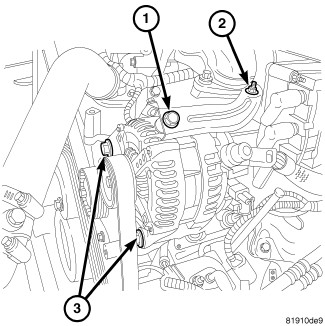

4. Remove the generator support bracket (1,2).
5. Remove cylinder head cover bolts.
6. Remove cylinder head cover and gasket.
