Crankshaft Rear Oil Seal Retainer - Removal

REMOVAL

NOTE: Any time the rear crank oil seal has been removed from the engine block, a new seal assembly must be installed. Do not re-use a real crank oil seal assembly once it has been removed.

1. Remove the transmission NSG370 Manual Transmission - Removal or Removal.
2. Remove the flex plate Flexplate - Removal or for vehicles equipped with a manual transmission, the flywheel Removal.

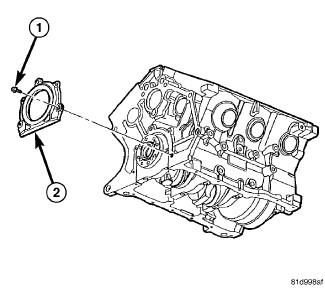

3. Remove oil seal retainer bolts (1).
4. Remove oil seal retainer (2).
5. Clean engine block and retainer of oil and gasket material. Make sure surfaces are clean and free of oil.
