Hydraulic Lifters - Removal

REMOVAL










1. Remove the cylinder head(s) Cylinder Head - Removal.

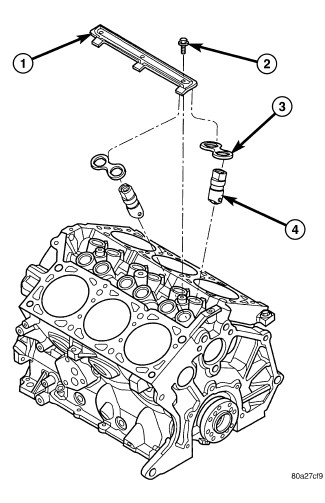

2. Remove the yoke retainer (1) and aligning yokes (3).
3. Remove the hydraulic lifters. If lifters are to be reused, identify each lifter to ensure installation in original location.
