Lifter / Lash Adjuster: Description and Operation

DESCRIPTION

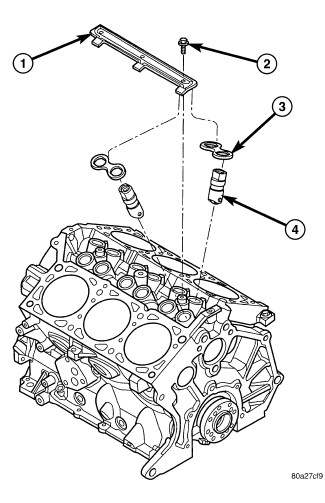

The hydraulic lifters are a roller type design and are positioned in the cylinder block with the lubrication whole facing upward. The lifters are aligned and retained by a yoke (3) and a retainer (1).

Lifter alignment is maintained by machined flats on lifter body. Lifters are fitted in pairs into six aligning yokes. The aligning yokes (3) are secured by a yoke retainer (1).
