Camshaft - Installation






INSTALLATION

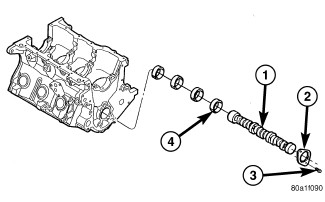

1. Lubricate camshaft lobes (1) and camshaft bearing journals (4) with engine oil.
2. Install a long bolt into the camshaft to assist in the installation of the camshaft.
3. Carefully install the camshaft (1) in engine block.
4. Install camshaft thrust plate (2) and bolts (3). Tighten to 12 Nm (105 in. lbs.) torque.
5. Measure camshaft end play. Engine Specifications If not within specifications, replace thrust plate.
6. Install the timing chain and sprockets. Timing Chain & Sprockets - Installation

NOTE: When camshaft is replaced, all of the hydraulic lifters must be replaced.

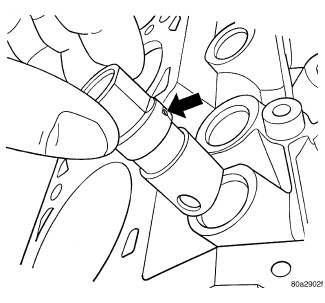

7. Install the hydraulic lifters with lubrication hole in the upward positionHydraulic Lifters - Installation.
8. Install the timing chain cover. Engine Timing Cover(s) - Installation
9. Install the cylinder heads. Cylinder Head - Installation
10. Install the cylinder head covers. Cylinder Head Cover(s) - Installation
11. Install the lower and upper intake manifolds. Intake Manifold - Installation
12. Install the radiator and cooling fan.
