Water Pump - Description






3.8L ENGINE

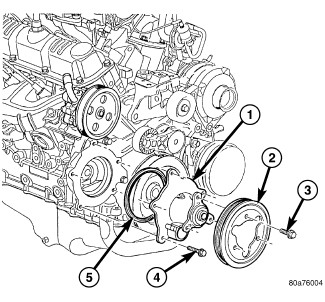

The water pump has a die-cast aluminum body and a plastic impeller. It bolts directly to the timing chain case cover, using a rubber seal for sealing. It is driven by the accessory drive belt.
