Front

REMOVAL





1. Raise vehicle and support the vehicle.
2. Remove the disc brake caliper (1) and adapter (2).
3. Remove the disc brake rotor (3).





4. Clean sensor (1) and surrounding area with shop towel before removal.
5. Remove bolt (2) attaching sensor (1) to hub/bearing.





6. Remove the sensor (1) through the hole in the brake shield (2).

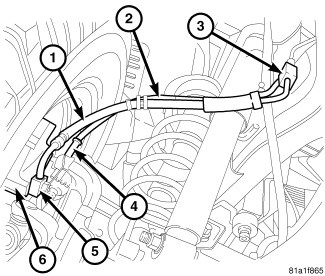

7. Remove sensor wire (2) from brake hose (1).
8. Disconnect sensor wire connector at harness plug.
