Front Seat - Description






DESCRIPTION

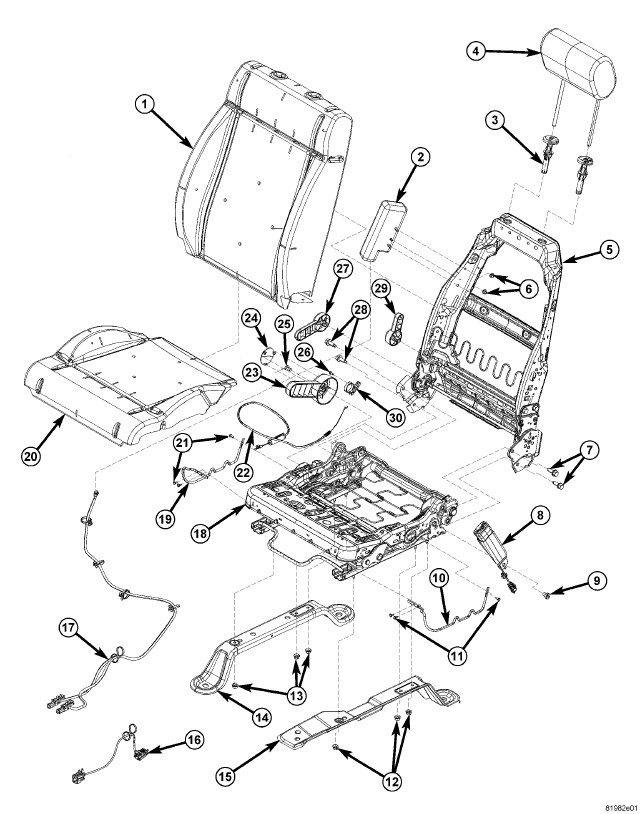

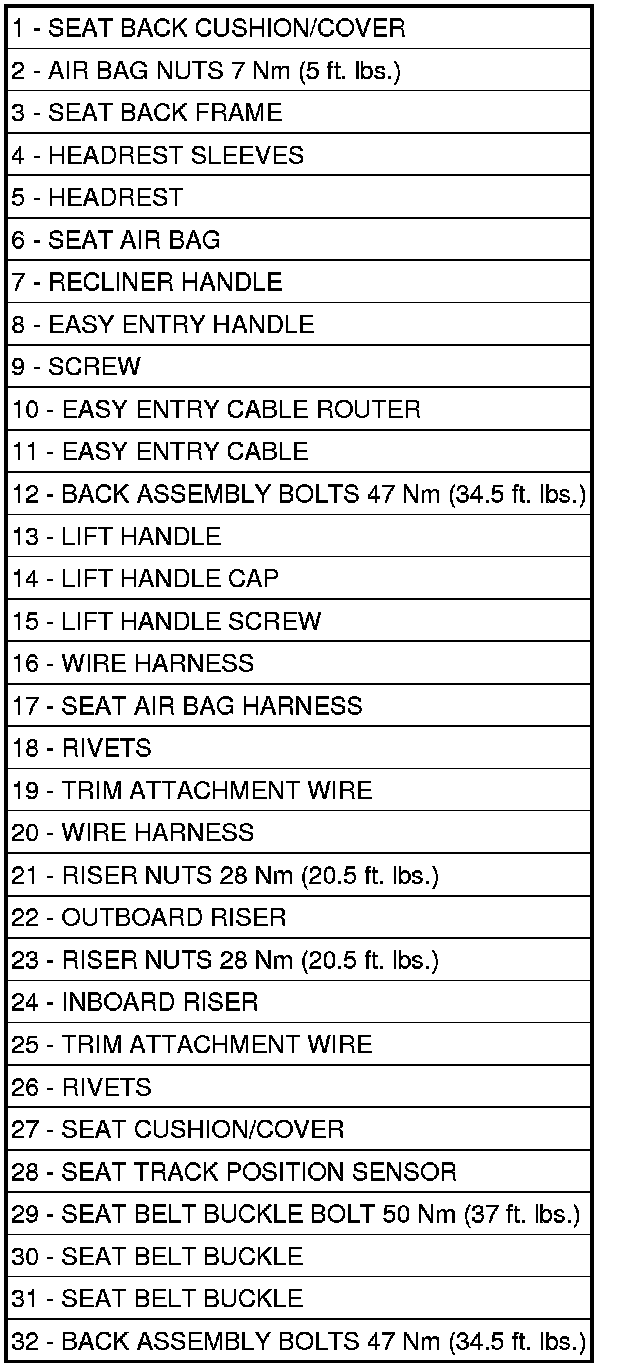

LEFT HAND SEAT - 2 WAY ADJUSTER

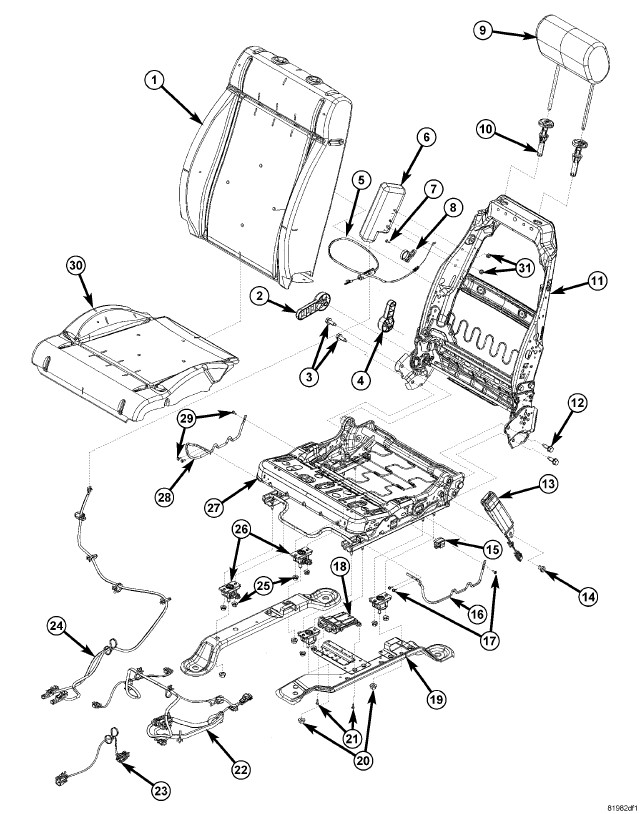

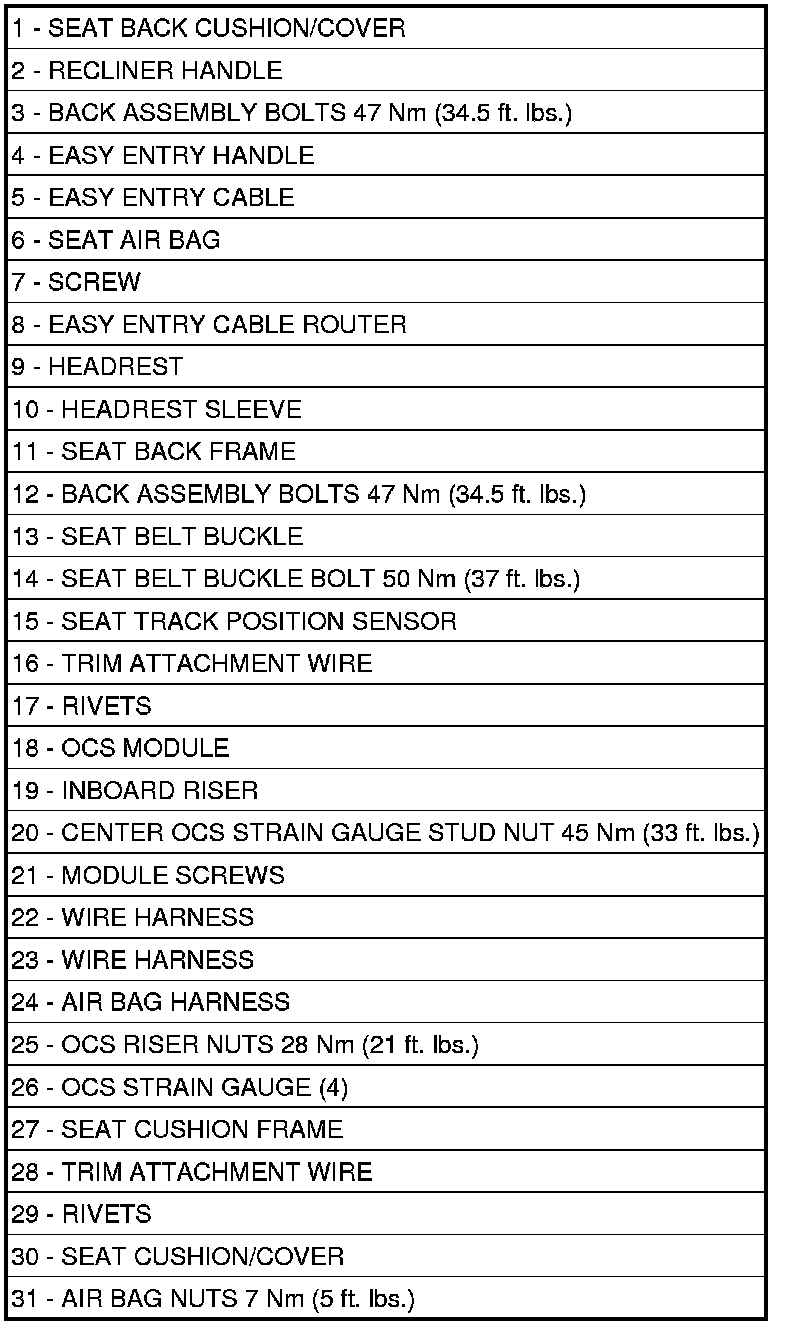

LEFT HAND SEAT - 4 WAY ADJUSTER

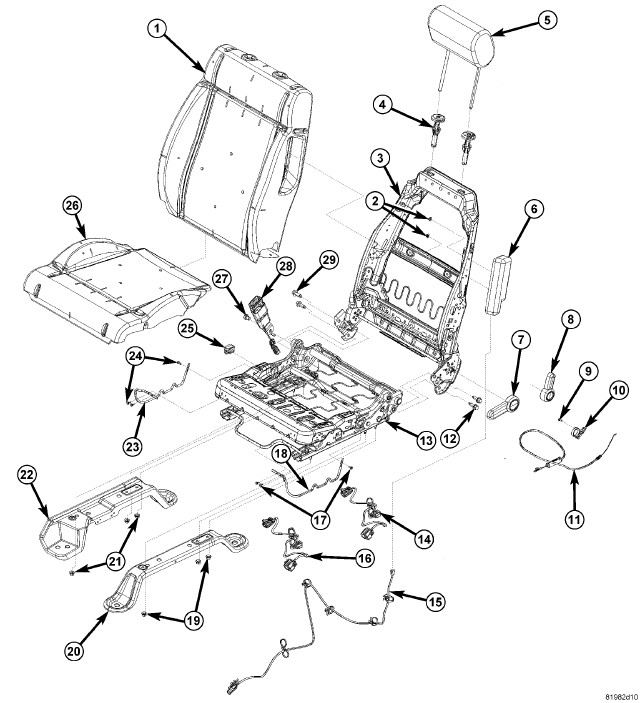

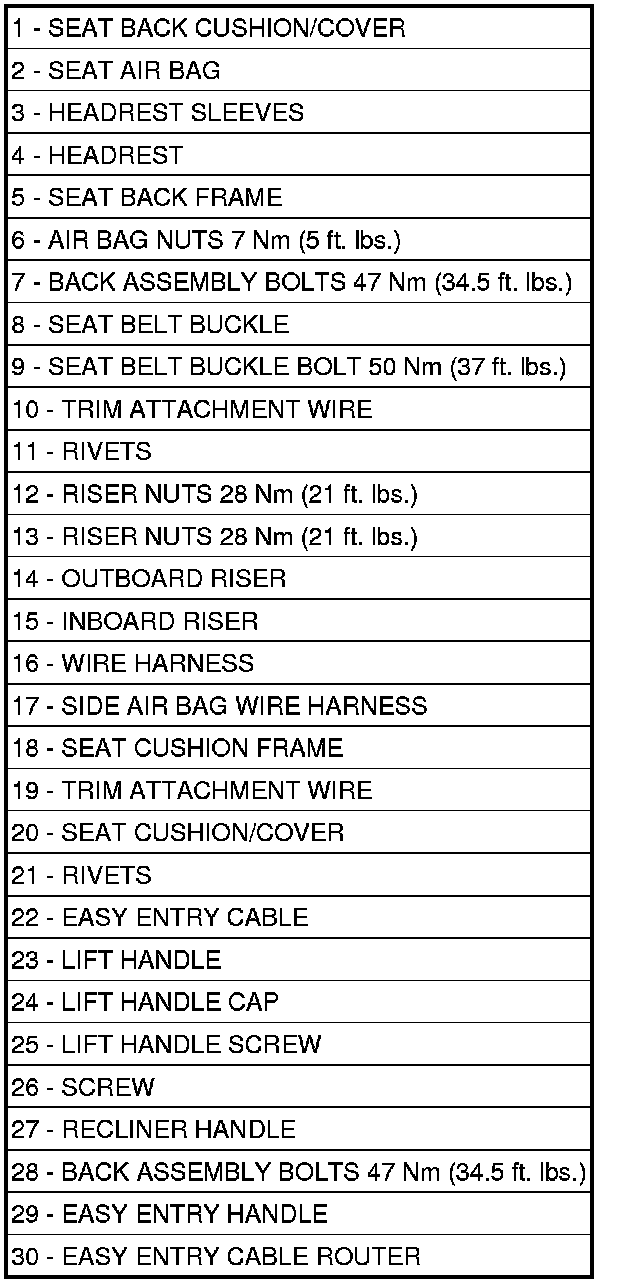

RIGHT HAND SEAT - 2 WAY ADJUSTER

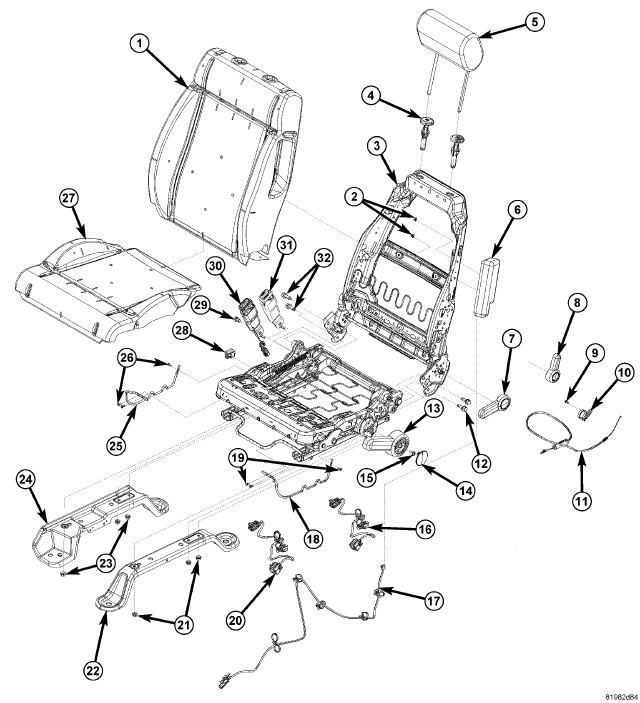

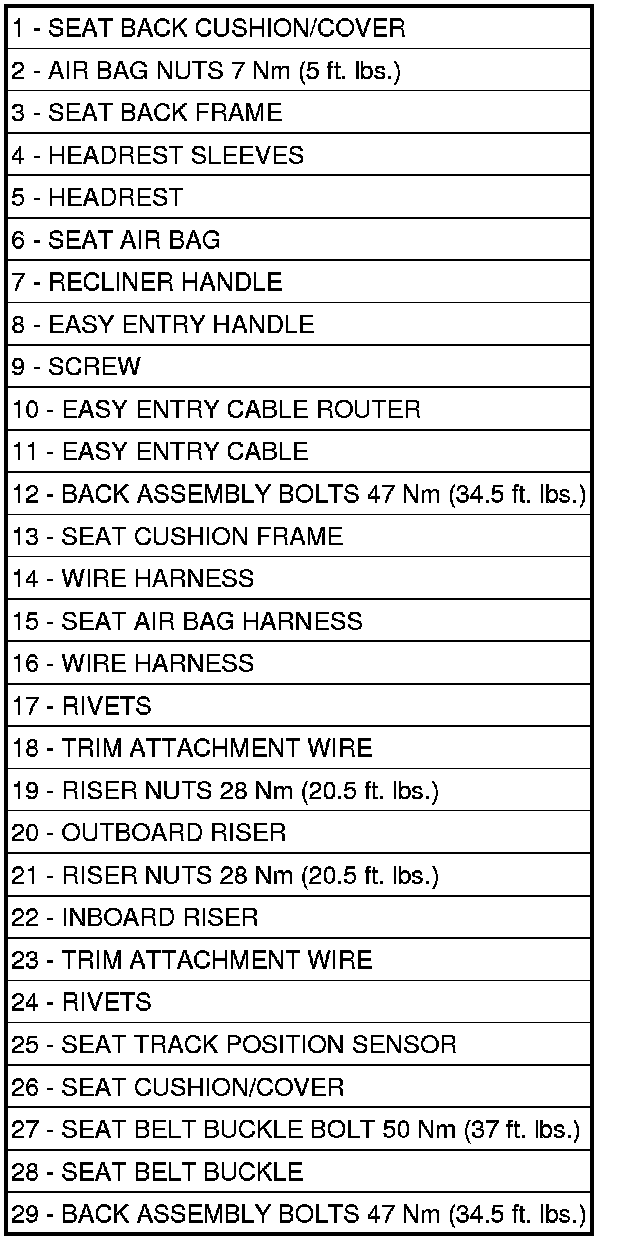

RIGHT HAND SEAT - 4 WAY ADJUSTER
